Hvordan laves neodymmagneter? En trin-for-trin guide til fremstillingsprocessen

Neodymium magnets are made through a powder metallurgy process that converts a precise alloy of neodymium, iron, and boron (Nd₂Fe₁₄B) into densely sintered magnetic blocks, which are then machined, coated, and magnetized. The entire process — from raw ore to finished magnet — involves eight distinct manufacturing stages, each requiring tight temperature and atmospheric controls to achieve the world's strongest permanent magnet performance.

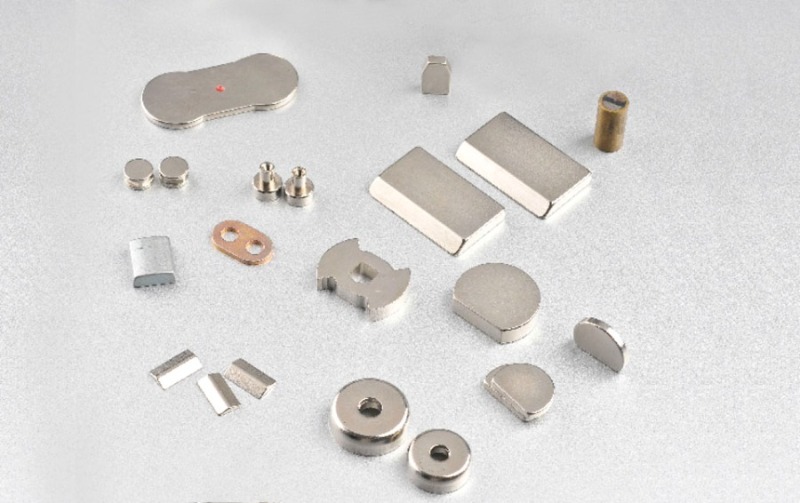

Klik for at besøge vores produkter: Sintret NdFeB magnet

Denne guide forklarer hvert trin i hvordan neodymmagneter er lavet , why each stage matters, how different grades compare, and what engineers and buyers need to know when sourcing these critical components for motors, sensors, speakers, wind turbines, and medical devices.

Hvilke råmaterialer bruges til at lave neodymmagneter?

Three primary elements form the foundation of every neodymium magnet: neodymium (a rare-earth metal), iron, and boron — combined in the intermetallic compound Nd₂Fe₁₄B. At få elementarforholdet præcist rigtigt er ikke til forhandling; selv en 1 % afvigelse i neodymindhold kan forskyde magnetens maksimale energiprodukt (BHmax) med 5–10 %.

Kernelegeringselementer

• Neodym (Nd) — typisk 29-32 vægtprocent; stammer primært fra bastnäsit- og monazitmalme; giver den hårde magnetiske fase
• Jern (Fe) — 64-66 vægtprocent; giver høj mætning magnetisering og danner den strukturelle matrix af legeringen
• Bor (B) — ca. 1 vægtprocent; stabiliserer den tetragonale krystalstruktur, der er afgørende for høj koercivitet

Ydeevneforbedrende tilsætningsstoffer

Højere-grade neodym magneter incorporate additional rare-earth elements and transition metals to improve high-temperature coercivity and corrosion resistance:

• Dysprosium (Dy) / Terbium (Tb) — tilsat ved 0,5-5 % for at øge koercitiviteten ved forhøjede temperaturer; kritisk for EV-motormagneter, der arbejder over 120°C
• Kobolt (Co) — forbedrer Curie-temperaturen og reducerer temperaturfølsomheden af magnetisk output
• Aluminium (Al), Kobber (Cu), Gallium (Ga) — korngrænsetekniske additiver, der reducerer sintringsporøsiteten og forbedrer korrosionsbestandigheden
• Praseodym (Pr) — ofte erstattet med en del af neodymindholdet (dannende "NdPr-legeringer") for at reducere omkostningerne uden at ofre væsentlig ydeevne

Hvordan laves neodymmagneter? 8-trins fremstillingsprocessen

Neodymium magnet manufacturing follows a sintered powder metallurgy route consisting of eight controlled stages: alloy melting, strip casting, hydrogen decrepitation, jet milling, pressing, sintering, machining, and surface coating — followed by final magnetization.

Fase 1 — Legering smeltning og båndstøbning

Præcis vejede råvarer smeltes sammen i en vakuuminduktionsovn ved temperaturer mellem kl. 1.350°C og 1.450°C . Vakuummiljøet (tryk under 0,1 Pa) forhindrer oxidation af det reaktive neodymindhold. Den smeltede legering størknes derefter hurtigt ved hjælp af båndstøbeteknik : the melt is poured onto a water-cooled rotating copper roller, producing thin flakes (0.2–0.4 mm thick) with a fine, homogeneous microstructure.

Strip casting replaced conventional book mold casting because it reduces alpha-iron (α-Fe) free phase formation by over 80%, directly translating to higher remanence in the finished magnet. Afkølingshastigheder på 10³–10⁴ °C/sekund opnås, hvilket låser den ønskede Nd₂Fe₁₄B-kornstruktur.

Fase 2 — Brintdecrepitation (HD)

The cast alloy flakes are exposed to hydrogen gas at 200–300°C, causing the material to absorb hydrogen and spontaneously fracture into a coarse powder — en proces kaldet brintdecrepitation. Den Nd-rige korngrænsefase absorberer fortrinsvis hydrogen, hvilket forårsager selektiv skør revnedannelse langs korngrænserne.

This step is critical because it safely breaks up the brittle alloy without introducing the contamination or heat that mechanical crushing would cause. Det resulterende HD-pulver har partikelstørrelser på 100-500 µm, klar til finformaling.

Trin 3 - Jet fræsning

The HD powder is fed into a jet mill where high-velocity nitrogen or argon gas streams accelerate particles to supersonic speeds, causing inter-particle collisions that grind material down to a mean particle size of 3–5 µm.

Particle size distribution is tightly controlled because it determines the number of single-domain grains in the final magnet — and coercivity (Hcj) scales directly with single-domain grain density. Overdimensionerede partikler (>10 µm) indeholder flere magnetiske domæner og reducerer koercivitet; underdimensionerede partikler (<1 µm) er for reaktive og oxiderer let. Iltindholdet i formalingsatmosfæren holdes under 50 ppm for at forhindre overfladeoxidation af det neodymrige pulver.

Trin 4 — Magnetisk feltpresning (orientering og komprimering)

The fine powder is pressed into green compacts inside a strong applied magnetic field of 1.5–2.5 Tesla, which aligns the c-axis of each powder particle parallel to the field direction — locking in the anisotropic orientation that gives neodymium magnets their exceptional performance.

Der anvendes to pressemetoder:

• Matrice, der presser i et magnetfelt (aksialt eller tværgående) — mest almindelig; anvender 100–200 MPa komprimeringstryk; producerer næsten-net-formede blokke eller diske
• Isostatisk presning (vådpose CIP) — pulver suspenderet i gylle presses isostatisk ved 200-300 MPa; opnår højere grøntæthed og bedre orienteringsensartethed for komplekse former

The green compact at this stage has a density of approximately 3.5–4.0 g/cm³ — far below the theoretical density of 7.5 g/cm³ — and is mechanically fragile. Det skal håndteres i en inert atmosfære for at undgå oxidation før sintring.

Trin 5 — Vakuumsintring og udglødning

Sintering is the most critical thermal step: green compacts are heated in a vacuum furnace to 1,050–1,100°C for 2–5 hours, causing liquid-phase sintering that densifies the compact to over 99% of theoretical density.

Under sintring fugter en Nd-rig væskefase (smeltepunkt ~665°C) korngrænserne og trækker partikler sammen ved kapillærvirkning. This densification eliminates inter-particle porosity and produces a microstructure of Nd₂Fe₁₄B grains (5–10 µm average diameter) surrounded by a thin, continuous Nd-rich grain boundary phase — the structure that enables high coercivity.

Efter sintring gennemgår delen en to-trins udglødningsbehandling: først ved 900°C i 1-2 timer, derefter ved 500-600°C i 1-3 timer. Den lavere temperaturudglødning optimerer korngrænsesammensætningen og øger koercitiviteten med 10-20% sammenlignet med as-sintrede dele.

Trin 6 — Bearbejdning og udskæring

Sintered neodymium magnet blocks are extremely hard (Vickers hardness ~570 HV) and brittle, so all shaping is performed by diamond grinding, wire EDM, or multi-wire slicing rather than conventional machining.

Diamond-coated slicing wheels running in coolant cut blocks into discs, segments, arcs, or custom profiles with tolerances of ±0.05 mm on precision grades. Skæring genererer fint magnetisk støv, som opsamles og genbruges. Kanterne er affasede for at reducere risikoen for afslag under belægning og montering.

Trin 7 — Overfladebelægning og korrosionsbeskyttelse

Bare neodymium magnets corrode rapidly in ambient conditions — the Nd-rich grain boundary phase reacts with moisture and oxygen, causing surface spalling within days — so every finished magnet receives at least one protective coating.

Tabel 1: Sammenligning af neodymmagnetoverfladebelægninger efter tykkelse, korrosionsbestandighed, driftstemperatur og påføringsegnethed.

Trin 8 — Magnetisering

Neodymium magnets are magnetized as the final manufacturing step by subjecting the coated part to a pulsed magnetic field of 3–5 Tesla — well above the magnet's coercive field — which aligns all magnetic domains parallel to the intended direction.

Magnetization is performed last (after machining and coating) because strongly magnetized parts attract ferrous debris and are hazardous to handle in production environments. A capacitor-discharge magnetizer delivers a millisecond-duration pulse through a custom-wound coil fixture designed for the specific magnet shape. Delvis magnetisering (f.eks. flerpolede mønstre i ringmagneter) opnås ved brug af segmenterede spolearrays.

Hvilke neodymmagnetkvaliteter er tilgængelige, og hvordan adskiller de sig?

Neodymium magnet grades are designated by their maximum energy product (BHmax in MGOe) followed by a letter suffix indicating their high-temperature coercivity capability — ranging from standard (no suffix) through H, SH, UH, EH, to AH for the most thermally stable grades.

Table 2: Neodymium magnet grade comparison by energy product, remanence, maximum operating temperature, heavy rare-earth content, and application.

Hvordan sammenligner sintrede neodymmagneter med bundede neodymmagneter?

Sintrede neodymmagneter tilbyder op til tre gange det magnetiske energiprodukt af bundne kvaliteter, men er begrænset til enklere geometrier; bundne magneter ofrer magnetisk ydeevne i bytte for komplekse netformede dele uden bearbejdningsaffald.

Bonded neodymium magnets are produced by blending rapidly quenched NdFeB powder (particle size 50–200 µm) with a polymer binder (typically nylon, PPS, or epoxy) and compression-molding or injection-molding the mixture into the final shape. Because the powder is randomly oriented (isotropic), BHmax values reach only 8–12 MGOe — compared to 35–52 MGOe for anisotropic sintered grades.

Tabel 3: Direkte sammenligning af sintrede versus bundne neodymmagneter på tværs af nøgleydelses- og produktionskarakteristika.

Hvorfor er kvalitetskontrol så kritisk i produktionen af ​​neodymmagneter?

A single out-of-spec batch of neodymium magnets can cause motor demagnetization in the field, costing 10–100× more than the magnet itself in warranty claims and assembly rework — making rigorous quality control the most commercially important aspect of the manufacturing process.

Standard kvalitetskontroltest udført på hvert produktionsparti inkluderer:

• Magnetisk egenskabstest (BH-kurve) — hysteresegrafmåling af Br, Hcb, Hcj og BHmax i henhold til IEC 60404-5 / MMPA standarder
• Dimensionel inspektion — CMM eller optisk komparator verifikation til tegningstolerancer (typisk ±0,05 mm for sintrede kvaliteter)
• Saltspraytest (ASTM B117) — belægningens korrosionsbestandighed verificeret ved 35°C, 5 % NaCl atmosfære
• Belægningsvedhæftning (cross-cut test, ISO 2409) — sikrer belægningens integritet under mekanisk belastning
• Ældningstest ved høj temperatur — magneter holdt ved den nominelle maksimale temperatur i 100 timer; fluxtab skal forblive under 5 %
• XRF / ICP kemisk analyse — bekræfter legeringssammensætning inden for ±0,5 % af det specificerede indhold af sjældne jordarter
• Densitetsmåling — Archimedes metode; massefylde under 7,40 g/cm³ indikerer uacceptabel porøsitet i sintrede kvaliteter

Hvilke innovationer former hvordan neodymmagneter fremstilles i dag?

Three major innovations are redefining neodymium magnet manufacturing: grain boundary diffusion (GBD) technology, heavy rare-earth reduction strategies, and additive manufacturing of magnet assemblies.

Grain Boundary Diffusion (GBD)

GBD er den mest kommercielt betydningsfulde nyere innovation. Instead of mixing dysprosium or terbium uniformly throughout the alloy, a Dy/Tb fluoride or oxide coating is applied to the magnet surface, then diffused along grain boundaries at 800–950°C. The heavy rare-earth concentrates exactly where it is needed — at grain surfaces — raising coercivity by 30–50% while using 50–70% less dysprosium than conventional blending methods. For elbilproducenter, der står over for dysprosiumforsyningsbegrænsninger, er denne forbedring transformerende.

Lav eller nul tunge sjældne jordarters formuleringer

Forskningsprogrammer rettet mod net-nul dysprosium-magneter udvikler sig gennem kornforfining til partikelstørrelser under 3 µm. Finer single-domain grains can achieve Hcj values above 25 kOe without dysprosium at temperatures up to 120°C — sufficient for many EV motor designs. Hot-deformation processing, an alternative to sintering, produces nanocrystalline microstructures with grain sizes of 200–400 nm, enabling coercivity values impossible with conventional sintering.

Additiv fremstilling og bundet komplekse geometrier

Binder jetting and extrusion-based 3D printing of NdFeB-polymer composites now produce complex magnet shapes — including Halbach arrays, segmented rings, and topology-optimized motor rotors — that are impossible to manufacture by conventional machining. While magnetic energy products currently reach only 8–15 MGOe, continued development of anisotropic printed magnets (aligning particles during printing with an applied field) is expected to push values above 20 MGOe within the next five years.

FAQ: Sådan fremstilles neodymmagneter

Konklusion

Forståelse hvordan neodymmagneter er lavet — from the precise alloy chemistry through strip casting, hydrogen decrepitation, jet milling, magnetic field pressing, vacuum sintering, machining, coating, and final magnetization — equips engineers, procurement teams, and product designers to make smarter sourcing decisions, write better specifications, and troubleshoot performance failures with confidence.

The manufacturing process is unforgiving: oxygen contamination at the milling stage, a 10°C deviation during sintering, or an undersized coating thickness can translate directly into field failures worth multiples of the magnet's purchase price. Equally, innovations like grain boundary diffusion and Dy-lean formulations are rapidly shifting what is achievable — reducing supply chain risk while maintaining or improving performance.

As demand from electric vehicles, wind turbines, robotics, and medical devices continues to outpace supply of heavy rare-earth elements, both the manufacturing process and the material science behind neodymium magnets vil forblive blandt de mest strategisk vigtige emner inden for avanceret fremstilling i en overskuelig fremtid.
